6 of 7Agriculture / Aerial robotics

Agricultural Drone

Engraved line drawing of Agricultural Drone (airframe built): modelled from photographs of our airframe. Moving the pointer over the drawing, or the Show in colour button, reveals the true-colour model.

Stage 3 of 4: Hardware — Airframe built
Inspect the parts

Our 3D model is built from photographs of the real airframe.

The idea & the why

A six-arm agricultural drone that brings a carbon-fibre frame, six motor assemblies, a central electronics stack and tall landing gear together in one machine.

The problem

Farms cover large areas in changing conditions, and many tasks need a view from above. This project builds an aerial platform for that work, starting with the airframe and the systems it carries.

Who it’s for

Farms and agricultural operators who need work done from the air.

The thinking behind it

Six radial booms carry the motor assemblies out from a central frame. The centre holds the electronics and wiring, and tall twin skids leave space below the body. Our 3D model is built from photographs of the real airframe.

The result

A six-arm aerial platform, assembled in our workshop and ready for system integration.

Disciplines

  • Agricultural robotics
  • Multirotor architecture
  • Electronics integration
  • Flight control

How it’s built

Every part below is read from the model file. Pick a group to pull its parts out of the assembly.

Engraved line drawing of Agricultural Drone: modelled from photographs of our airframe, its parts grouped for inspection. Moving the pointer over the drawing, or the Show in colour button, reveals the true-colour model.

18 parts in the model

3 parts in Airframe

  • Top deck
  • Lower deck
  • Centre cage

6 parts in Six booms

  • Boom times 6

6 parts in Motor assemblies

  • Motor times 6

1 part in Electronics & wiring

  • Electronics and visible wiring

2 parts in Landing gear

  • Left landing gear
  • Right landing gear

Gallery

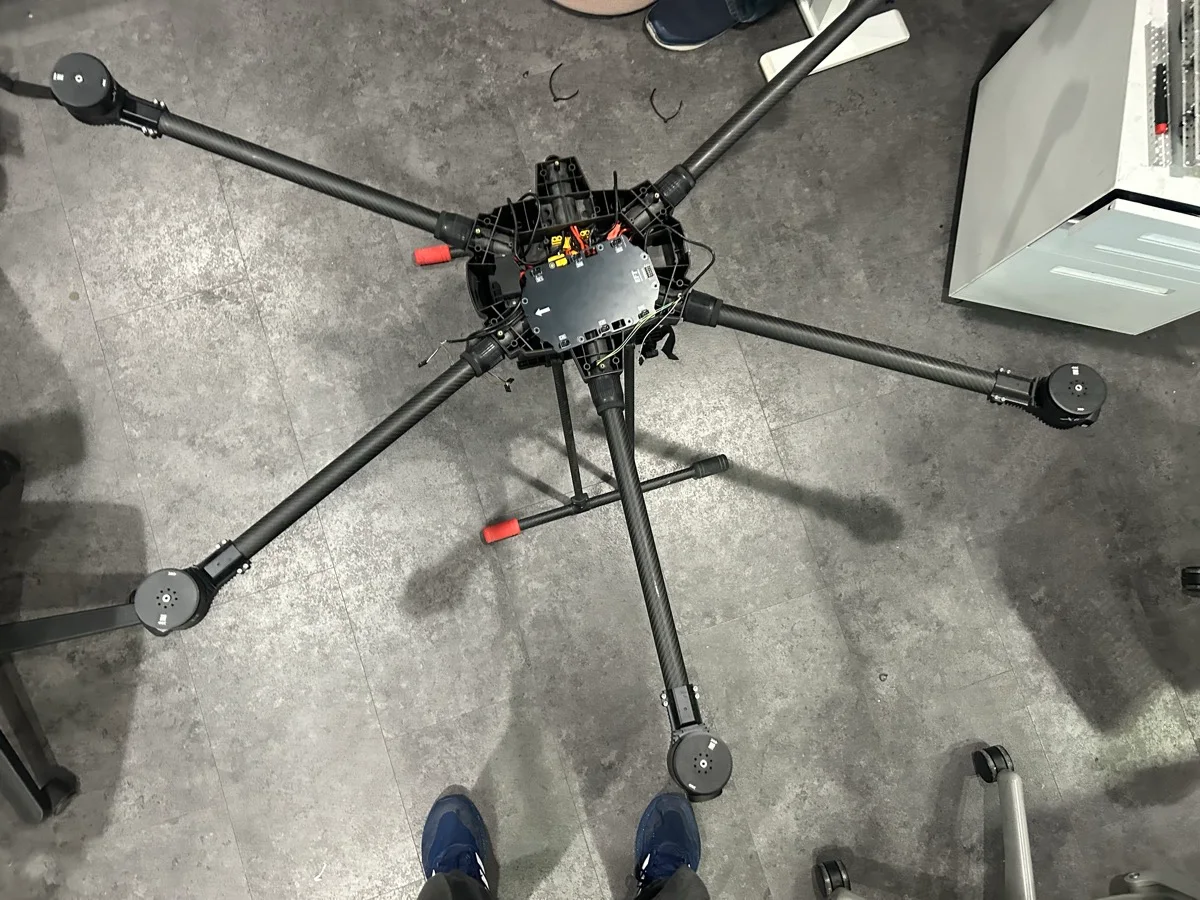

The six-arm drone airframe in the BatLabs workshop, viewed from above, with motors and no propellers.
The assembled airframe — six booms around the central electronics stack.
Side view of the drone showing its tall landing gear and red skid caps.
Landing gear, motor mounts and centre frame in the workshop.

What we built

  1. 1. CONCEPTThe idea, modelled in 3D and ready to develop.
  2. 2. DESIGNEngineered in CAD, part by part, ready to make.
  3. 3. HARDWARE — This projectParts made and assembled into a physical build.
  4. 4. PROTOTYPEBuilt, wired and running on the bench.
Stage 3 of 4: Hardware — Airframe built
What we built
A six-arm carbon-fibre airframe with its motor assemblies, wiring, a central electronics tray and twin landing skids.
