2 of 7Wearable sensing / Human-centred design

Ambient Comfort

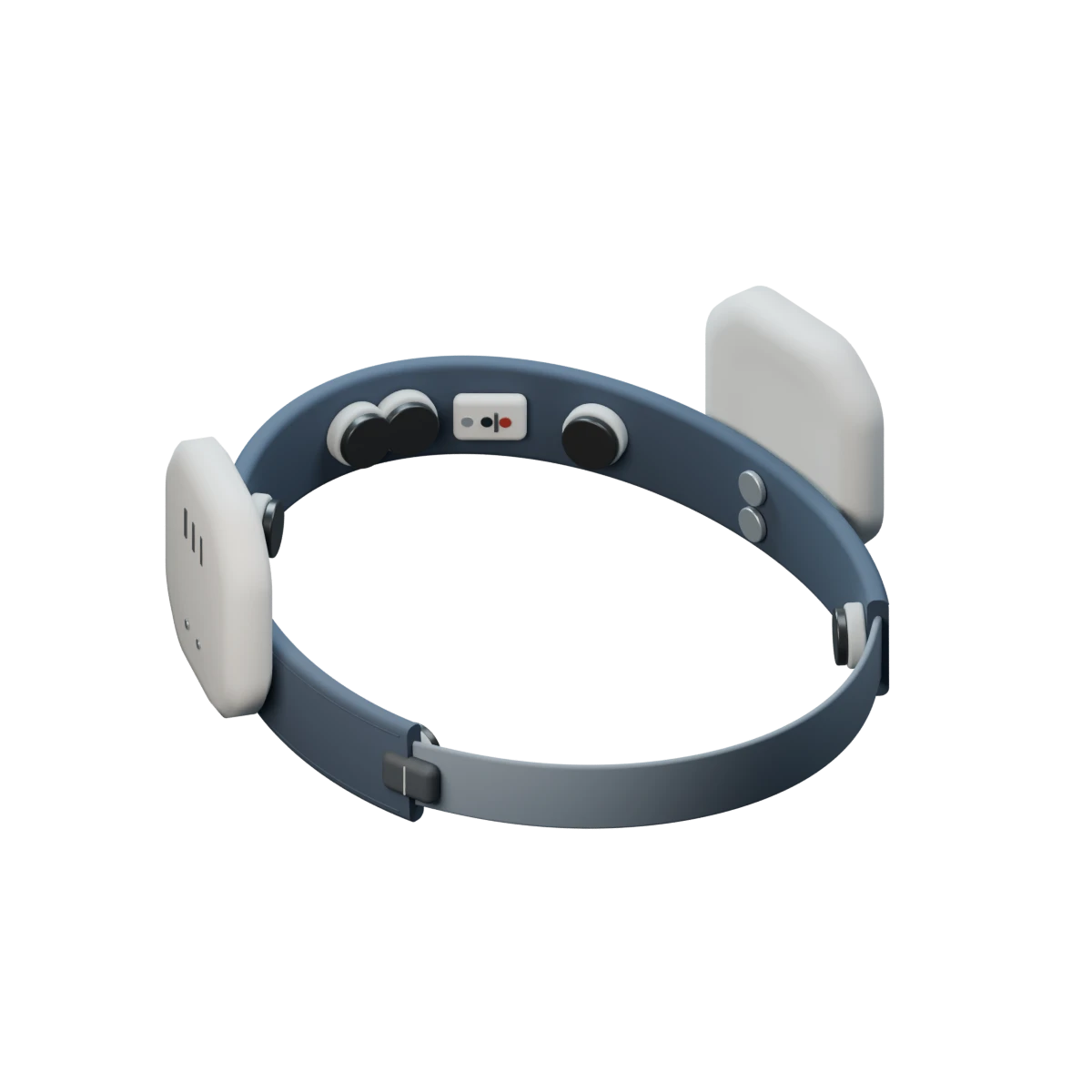

Engraved line drawing of Ambient Comfort (wearable concept): a concept model of the wearable. Moving the pointer over the drawing, or the Show in colour button, reveals the true-colour model.

  • Left forehead sensor
  • Right forehead sensor
  • Centre reference sensor
  • Centre ground sensor
  • Behind the left ear
  • Behind the right ear

Where the EEG sensors sit on the band. Pick one to light it up.

Stage 1 of 4: Concept — Wearable concept
Inspect the parts

The idea & the why

An EEG headset concept that brings electrodes, skin sensors and modular electronics into one wearable study for an adaptive comfort system.

The problem

An adaptive comfort system needs to understand the person in the room. That means sensing that is comfortable enough to wear, with every sensor in the right place.

Who it’s for

Teams designing human-centred environments and wearable sensing.

The thinking behind it

A modular band brings together EEG electrode positions, skin sensors and electronics pods. Modelling it first shows how the band, skin contact and internal packaging fit together before any hardware is made.

The result

A wearable platform for sensing experiments, designed around comfort and accurate sensor placement.

Disciplines

  • Wearable sensing
  • Human-centred design
  • Electrode placement
  • Skin sensors

How it’s built

Every part below is read from the model file. Pick a group to pull its parts out of the assembly.

Engraved line drawing of Ambient Comfort: a concept model of the wearable, its parts grouped for inspection. Moving the pointer over the drawing, or the Show in colour button, reveals the true-colour model.

52 parts in the model

6 parts in Band

  • Band fabric 30×6
  • Back strap 20×2
  • Clasp breakaway 18×12×6
  • Clasp separation seam
  • Band stitched hem times 2

12 parts in Pods

  • Pod left 68×68×14
  • Pod left charge contact times 2
  • Pod left vent times 3
  • Pod right 68×68×14
  • Pod right charge contact times 2
  • Pod right vent times 3

12 parts in Electrodes

  • Cushion AF7 5 mm
  • Electrode AF7 16×3
  • Cushion AF8 5 mm
  • Electrode AF8 16×3
  • Cushion Fpz reference 5 mm
  • Electrode Fpz reference 16×3
  • Cushion Fpz bias 5 mm
  • Electrode Fpz bias 16×3
  • Cushion TP9 5 mm
  • Electrode TP9 16×3
  • Cushion TP10 5 mm
  • Electrode TP10 16×3

9 parts in Skin sensors

  • Sweat left AgAgCl times 2
  • Sweat right AgAgCl times 2
  • Pulse temperature puck 20×14×5
  • Puck red LED skin window
  • Puck photodiode skin window
  • Puck temperature skin window
  • Puck optical isolation wall

13 parts in Pod electronics

  • PCB 61×61
  • PCB component times 3
  • PCB edge pad times 7
  • LiPo 50×34×6
  • LiPo folded edge

Gallery

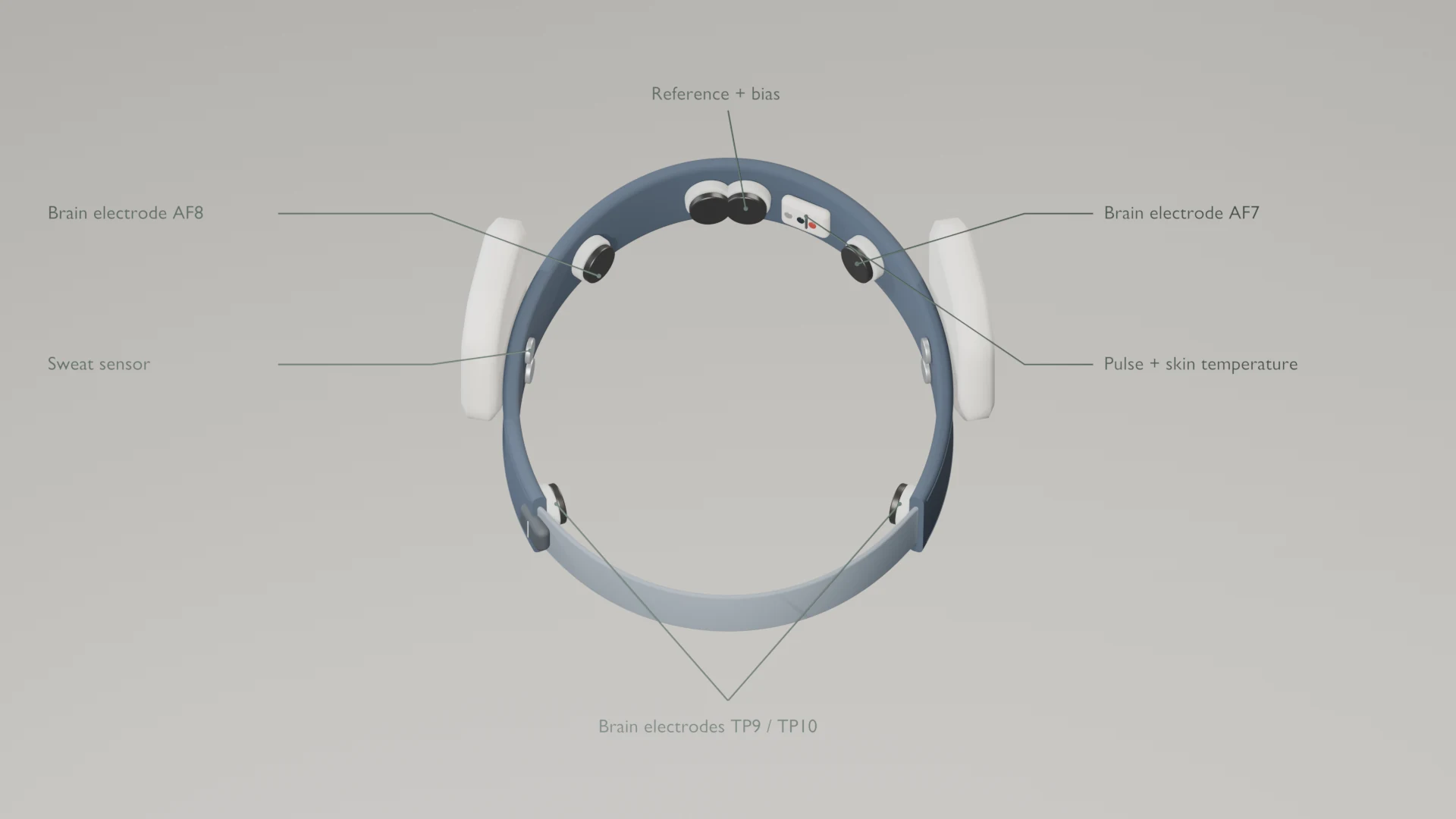

Concept render of the Ambient Comfort band seen from inside, with labelled electrode, skin-sensor and pulse/temperature positions.
Inside the band: where each electrode and sensor sits.

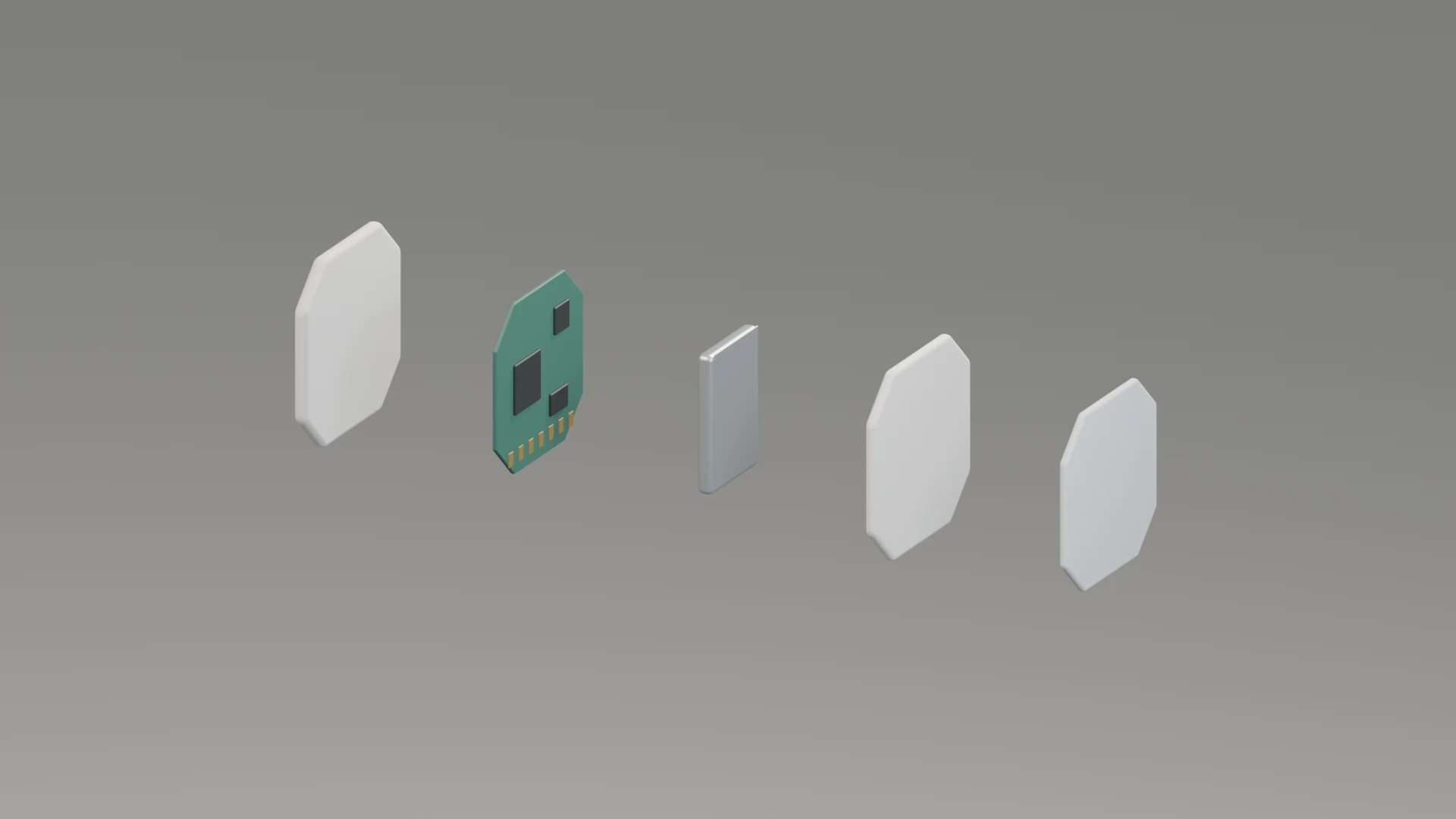

Exploded concept render of an Ambient Comfort pod: housing shells, a circuit board and a battery.
A sensor pod, exploded: housing, circuit board and battery.

What we built

  1. 1. CONCEPT — This projectThe idea, modelled in 3D and ready to develop.
  2. 2. DESIGNEngineered in CAD, part by part, ready to make.
  3. 3. HARDWAREParts made and assembled into a physical build.
  4. 4. PROTOTYPEBuilt, wired and running on the bench.
Stage 1 of 4: Concept — Wearable concept
What we built
A fully proportioned model of the band, its sensor pods, the EEG electrode positions and the skin sensors.
