4 of 7Engine monitoring / Embedded systems

Himaya

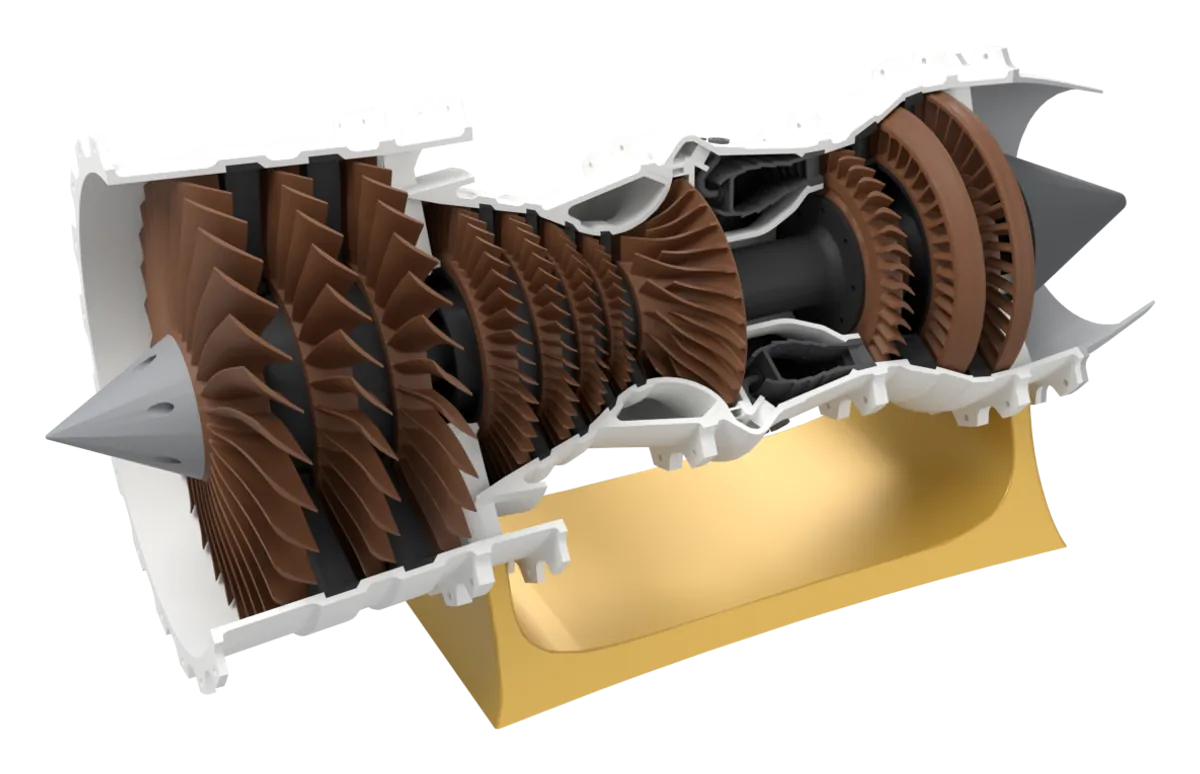

Engraved line drawing of Himaya (working sensor prototype): our 3D model of the engine on the bench. Moving the pointer over the drawing, or the Show in colour button, reveals the true-colour model.

Give it a spin. Scrolling turns it too.

Stage 4 of 4: Prototype — Working sensor prototype
Inspect the parts

Our 3D model of the engine on the bench.

The idea & the why

A sensor-equipped turbine model and local dashboard: a test bed for listening to acoustic, rotational and vibration signals around engine distress.

The problem

Spotting engine distress early starts with listening to the engine. Acoustic, rotational and vibration signals need a physical test bed where sensing and data capture come together.

Who it’s for

Engineering teams working on machine monitoring and predictive maintenance.

The thinking behind it

A printed turbine model carries a microphone, an optical rotation sensor and a vibration switch, wired to an Arduino UNO Q. A local dashboard brings the readings together.

The result

A working sensor bench that won Best Innovative Hack at INSPIRE, and the foundation for automatic fault detection.

Disciplines

  • Engine monitoring
  • Embedded systems
  • Acoustic sensing
  • Local dashboard

How it’s built

Every part below is read from the model file. Pick a group to pull its parts out of the assembly.

Engraved line drawing of Himaya: our 3D model of the engine on the bench, its parts grouped for inspection. Moving the pointer over the drawing, or the Show in colour button, reveals the true-colour model.

53 parts in the model

6 parts in Fan & spinner

  • Fan stage times 3
  • Spinner
  • Fan stator times 2

4 parts in LP spool

  • LP spool AFT times 2
  • LP spool connector
  • LP spool FWD

2 parts in HP spool

  • HP spool FWD
  • HP spool AFT

9 parts in Compressor

  • Centrifugal compressor
  • HPC times 4
  • HPC stator times 4

17 parts in Combustor

  • Swirl dome
  • Combustion chamber
  • Inner combustion casing half times 2
  • Fuel injector times 13

5 parts in Turbines

  • LPT times 2
  • HPT
  • LPT stator
  • HPT stator

6 parts in Casing

  • Outer combustion casing
  • Fan casing
  • LP spool bearing holder
  • Fan stator and HP core casing half times 2
  • Turbine casing

3 parts in Nozzle

  • Nozzle cone
  • Nozzle section
  • Straight exhaust nozzle

1 part in Stand

  • Stand

Gallery

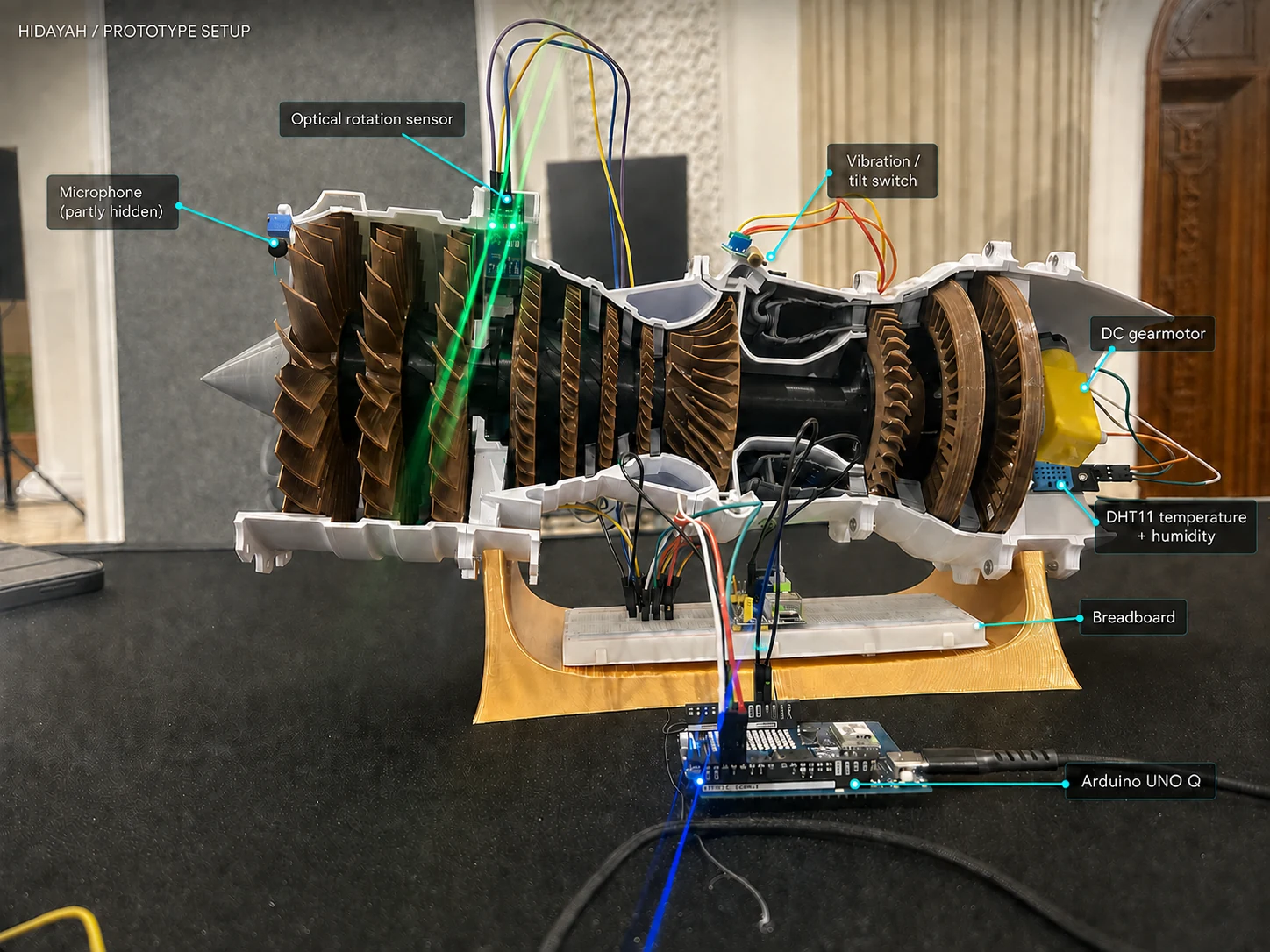

Labelled photo of the Himaya bench prototype: BatLabs’ printed turbofan model with its sensors wired to an Arduino UNO Q.
The Himaya bench prototype: our printed engine, its sensors and the Arduino UNO Q.

Himaya · Award

Best Innovative Hack.

Himaya won Best Innovative Hack at INSPIRE.

We modelled the trophy in 3D from the original. Move over the drawing to reveal its gold finish.

A photo-based 3D reconstruction of the gold Best Innovative Hack trophy: ornamental handles, a faceted cup, a tiered lid and a burgundy plinth.

What we built

  1. 1. CONCEPTThe idea, modelled in 3D and ready to develop.
  2. 2. DESIGNEngineered in CAD, part by part, ready to make.
  3. 3. HARDWAREParts made and assembled into a physical build.
  4. 4. PROTOTYPE — This projectBuilt, wired and running on the bench.
Stage 4 of 4: Prototype — Working sensor prototype
What we built
A printed turbine on the bench with a microphone, an optical rotation sensor, a vibration switch and a temperature and humidity sensor, all running on an Arduino UNO Q.
